Guangdong Hongtuo Instrument Technology Co.,Ltd.
 |
| Herkunftsort: | Dongguan, China |
| Zertifizierung: | ISO |
| Modellnummer: | Die Ausgabe der Zulassung ist ab 1. Januar 2018 zu beenden. |
| Min Bestellmenge: | ein Satz |
|---|---|
| Preis: | negotiable |
| Verpackung Informationen: | Standard-Export-Holzpaket |
| Lieferzeit: | 5 Tage |
| Zahlungsbedingungen: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Versorgungsmaterial-Fähigkeit: | 300 Sätze pro Monat |
| Auflösung (μm): | 0,5 | Anzeigefehler (mm): | E1XY=(2,5+L/100) |
|---|---|---|---|
| Gewicht: | 170kg | Test vor der Lieferung: | Ja |
| Kundenservice nach dem Verkauf: | Ja | Produktname: | Profilprojektor |

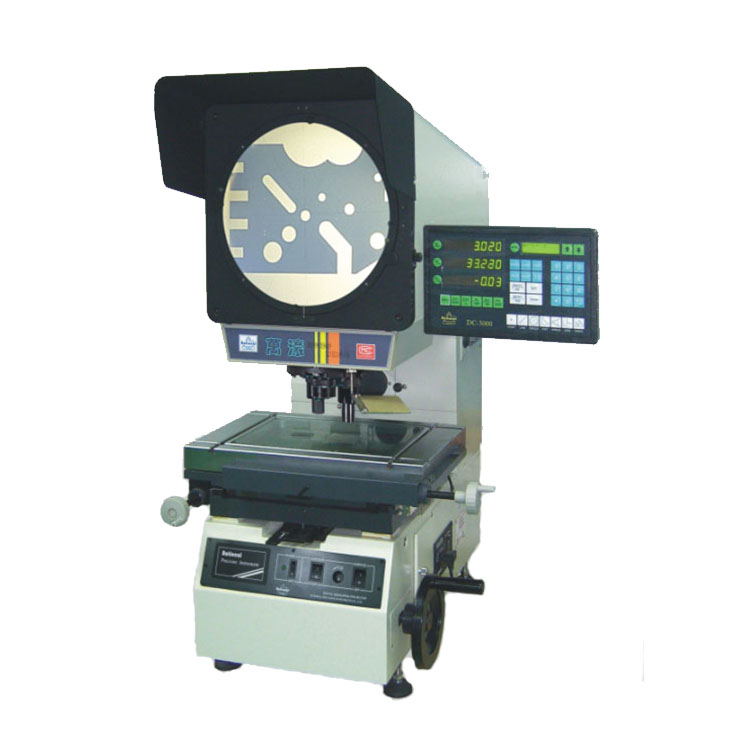

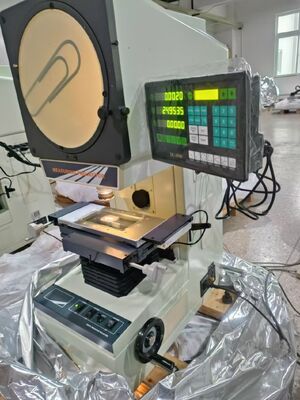

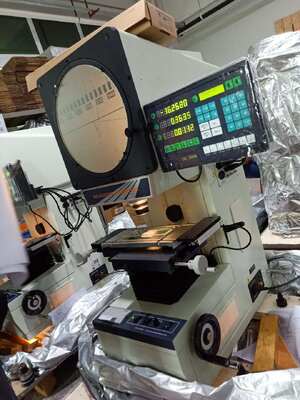

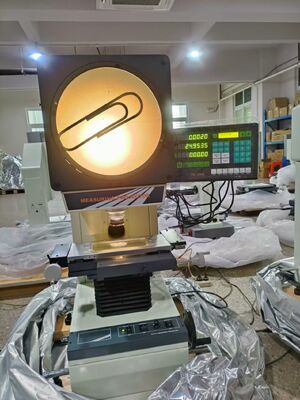

Multi - Lens Optical Measuring Machine Profile Projector With Stepping Motor Driving
Features:
1. High precision
2. Stepping motor driving .
3. Electric focusing and counting linear scale are adopted in Z axis
4. Easy to operate
5. Resolution of linear scale: 0.5um
6. Powerful Digital Readout to support easy and accurate measurement
7. Reliable and cost-effective
8. Precise and accurate
9. Low maintenance cost
10. Optional Proprietary software
Specifications:
| Model | CPJ-3015CZ | CPJ-3020CZ | CPJ-3025CZ | |||
| X-axis Travel (mm) | 150 | 200 | 250 | |||
| Y-axis Travel (mm) | 100 | 100 | 150 | |||
| Metal table size (mm) | 354×228 | 404×228 | 450×280 | |||
| Glass table size (mm) | 210×160 | 260×160 | 306×196 | |||
| Resolution (μm) | 0.5 | |||||
| Indication error (mm) | E1XY=(2.5+L/100) | |||||
| Z-axis Travel (mm) | 100 | |||||
| Weight (kg) | 170 | 175 | 180 | |||
| Dimension (mm) | 780×810×1120 | 780×810×1120 | 780×810×1120 | |||
| Projection screen | Size (mm) | Ф 312 | ||||
| Rotary range | 0~360° | |||||
| Resolution | 1' or 0.01° | |||||
| Lens | Magnification | 10× (Optional) | 20× (Optional) | 50× (Optional) | 100× (Optional) | |
| Field of view (mm) | Ф30 | Ф15 | Ф6 | Ф3 | ||
| Working distance (mm) | 77.7 | 44.3 | 38.4 | 25.3 | ||
| Max. measuring Height (mm) | 90 | 90 | 90 | 90 | ||
|
Power supply: AC 100-240V 50/60Hz. Total power: 400W |
||||||
